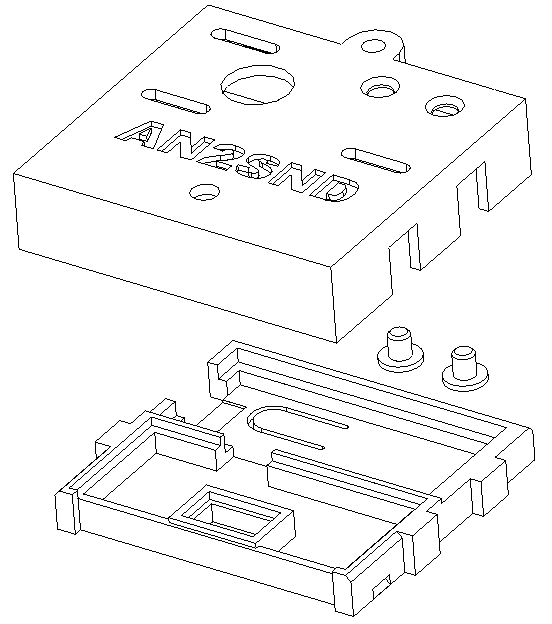

Print out the case parts using white FR rated ABS.

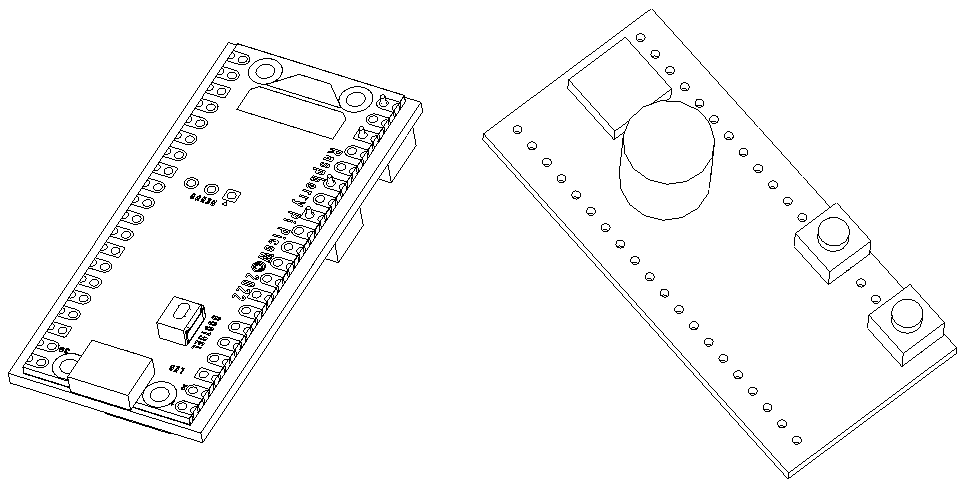

Solder pi pico w to the 5 volt animator board. Solder two switches on the top as shown at GND/GP11 GND/GP15. Clip the leads on the backside.
Solder pot to pot board.

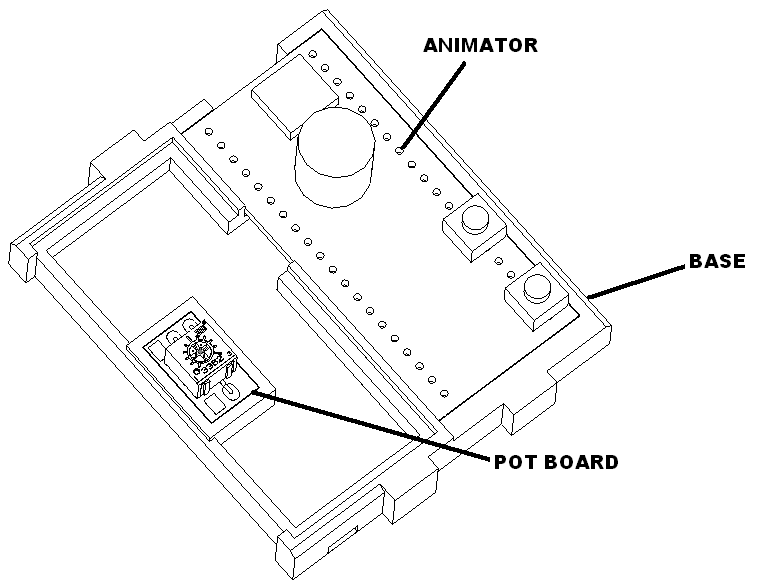

Place the animator board and the board into the assembly as shown.
Board connections
Cut black, blue, yellow 30 gauge wire to xxx inches and twist.
And solder black, blue and yellow 30 gauge wire to the neopixel using the following table.
| Animator connection | Pot board | Wire Color |
| GD | SQ pad 1 | BLK |
| ADC0 pin 31 | pad 2 | YEL |
| 3V | pad 3 | BLU |
Connect the male power cable to the 12-18V PWR inputs on the animator board using the following table.
| Connect to | Wire Color |
| PWR (sq pin 1) | BLK |
| PWR (pin 2) | RED |
Cut 22 gauge three pin female cable to 6 inches. Mark as servo 1. Connect to the animator board using the following table:
| Connect to | Wire Color |
| M13 GND (sq pin 1) | WHT |
| M13 5V (pin 2) | RED |
| M13 Output (pin 3) | GRN |
Cut 22 gauge three pin female cable to 6 inches. Mark as servo 2. Connect to the animator board using the following table:
| Connect to | Wire Color |
| M14 GND (sq pin 1) | WHT |
| M14 5V (pin 2) | RED |
| M14 Output (pin 3) | GRN |
Glue the wires down with liquid CA glue and spray on accelerator. Let dry.
Tape buttons to lid and snap lid on.
Load latest software on device.
